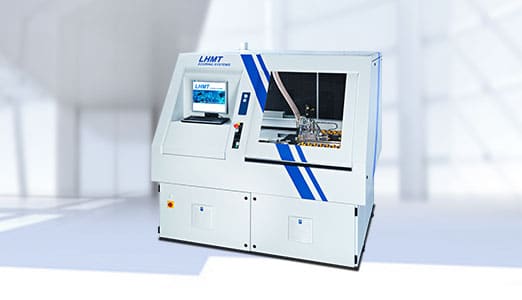

SCM411 – Flexible, manual scoring machine system

Our flexible, manual scoring machine of type SCM 411 meets all current and future technical requirements for PCB scoring.
Specifically designed for prototype and small-series production, this machine does not compromise on the functions and options available in our larger scoring machine models.

With its specially developed PCB clamping and registration system, along with high-precision milling drives and cross tables, the SCM 411 delivers outstanding accuracy.
By adding the optional “Wet Scoring Unit”, all aluminium or full-copper PCBs can be processed with optimal quality and productivity.

All process parameters required for production are readily available to the operator and can be adjusted or optimized at any time.
The machining of halogen-free and flex materials is also possible.
Automation can be upgraded at any time to the SCM 412 model.

Typical Applications

• Scoring

• Step scoring

• Single-sided scoring (top only / bottom only)

• Climb or conventional scoring

• Offset-centre scoring

• Spindle speeds: 1,000–6,000 rpm

Machining Quality

• Ball screw drives on all axes

• The low-vibration machine structure provides the best conditions for highly precise machining results

Registration

• Conical pin clamping system

Options

• CCD camera system for surface measurement/correction

• 2D laser measurement with automatic scoring blade correction

• Wet scoring unit for machining aluminium and copper

• Spindle speed up to 12,000 rpm

• Linear drive

• Data Matrix code reading station

• Barcode reader
